Automatic High Precision High Speed Linear Rail Flat Bed Gang Tools CNC Machine CNC Mini Metal Lathe

Product Description

Product Discription:
-Taiwan linear guide,long-lasting precision
-Sheet metal full protection design,good waterproof performance
-The bed is designed with overall structure,strong rigidity and good stability
-The use of a row of knife holders can greatly reduce the tool change time
-Pneumatic +spring collet clamping metold,simple structure,fast responce
-Rear chip removal structure design (Z axis lengthening type) is more suitable for automatic upgrade of variose disc parts

Fit Range
1.Have the function of turning cylinder,taper,arc,extrenity,cut through,bore ream,make kinds of screw thread
2.Fit for auto and mobile part,valve,electric tool,hardware meter ect,whosesurface crassitude is with rat.

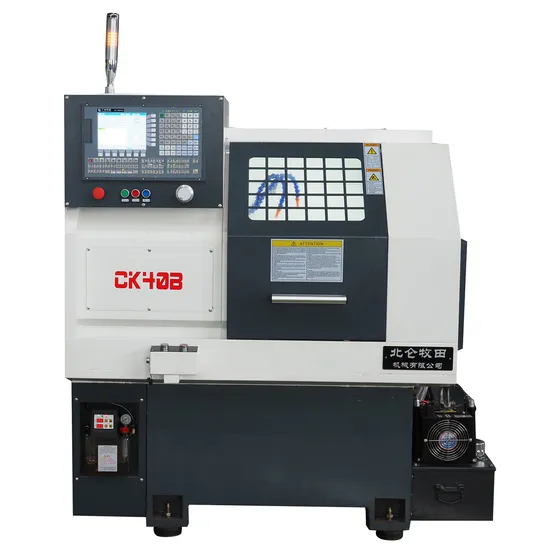

Product show

Specification

Item	Parameter	CK40B
Capacity	Max.swing over bed	Φ300mm
	Max.swing over slide	Φ120mm
	Max.workpiece length	280mm
	Bar diameter	Φ39mm
Spindle	Maximum spindle speed	3000r/min
	Dia of spindle bore	Φ49mm
	Spindle taper	01:20
Rapid traverse	X-axis rapid traverse	25m/min
	Z-axis rapid traverse	25m/min
Axis stroke	X-axis limit travel	250mm
	Z-axis limit travel	300mm
Tool	Tool post/turret	gang tool post
	Shank size	20*20mm
Others	Min setting unit	X axis:0.001mm Z axis:0.001mm
	Spindle motor power	4.0KW
	Dimension(L*W*H)	1450*1150*1550mm
	Weight/aprroximate weight	1100KG

Our Company
Ningbo beilun Mutian Machinery was founded in the Beilun Development Zone of Ningbo City, located in the southern wing of the Yangtze River Delta. The company has a technical team that has undergone reform and development in China and has a deep understanding of machine tools. While mastering machine tool manufacturing technology proficiently, it is also exploring and innovating, striving for excellence and strength.
Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning &milling composite machine tool; CNC lathes and manipulators flexible combination of automation integration machine;
and tailored to customers personalized, intelligent production lines.
Enterprise integration " One Belt and One Road " strategy into a strong force, through several years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many domestic and overseas enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents. ourProducts sells well all indoemestic and exported to Europe ,United States, Southeast Asia, the Middle East and other countries, obtained verygoodreputationofcustomers .
Packing & Delivery
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery Details : 15-60 days after PI confirmed and deposite received.
Quanlity& Honor
Exhibition photos
FAQ Q: Are you trading company or manufacturer ?
A: We are factory. Beilun mutian machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.

Q: How long is your delivery time?
A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.

Q: Where is your factory located ? How can I visit there ?
A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.
