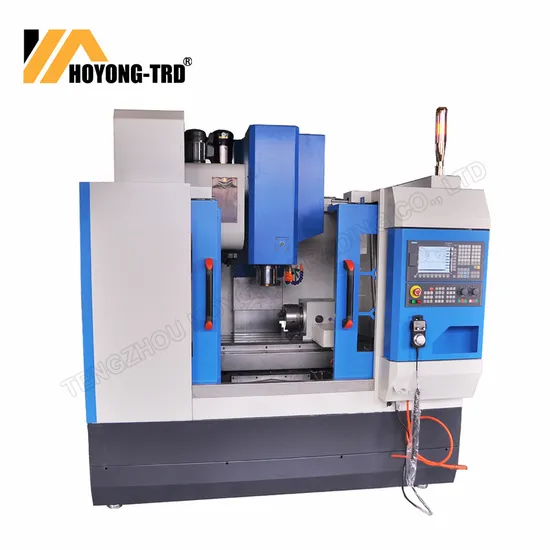

CNC Milling Machine Price Xh7125 Xh7126 Xh7132 Xh7132A Xh7145A
| US$15,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XH7125 XH7126 XH7132 XH7132A XH7145A
Type
Meter Milling Machine
Object
Metal
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Plywood Case
Specification
1200x1500x2100mm
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595100
Production Capacity
50 PCS/Month
Product Description
CNC MILLING MACHINE FEATURES:
Preload ball screw on, Y, Z-Axis
High speed spindle unit
Linear-guideway on X, Y, Z-Axis
Full protection
Machine tool changer from Taiwan with 20 -station
Mechanical weight balance on Z-AXIS
High -quality spindle bearing ensures very quiet operation and longer sevice life
STANDARDACCESSORIES:
FANUC 0i mate-MD CNC system, and linear guide-way.
High speed spindle unit(10000rpm).
Umbrella type A.T.C with 10 tools.
Pneumatic tools clamping and releasing system.
5.5KW Servo-driver for spindle.Air cooling
Air cooling. Full splash guard.
Adjusting wedge and screw.
Spring chuck, Tool shank, and Rivet.
Interval auto-lubricating
SPECIFICATIONS
| SPECIFICATION | UNIT | XH7132A |
| X-axis travel | mm | 500 |
| Y-axis travel | mm | 320 |
| Z-axis travel | mm | 400 |
| Spindle nose to table | mm | 120-520 |
| Spindle center to column guide-way face | mm | 360 |
| High speed feeding of X,Y axis | mm/min | 24000 |
| High speed feeding of Z axis | mm/min | 18000 |
| Feeding speed | mm/min | 1-4000 |
| Size of rotary table | mm | 800×320 |
| Max.loading capacity of rotary table | kg | 300 |
| T-slot NO./width/distance of rotary table | 3/14/100 | |
| Spindle max.speed | r/min | 10000 |
| Main motor rated power | kw | 3.7 |
| Spindle nose taper | BT30 | |
| Max.diameter of tools | mm | Dia. 100 |
| Max.length of tools | mm | 200 |
| Max.weight of tools | KG | 5 |
| Pneumatic press | mPa | 0.6 |
| N.W | KG | 2400 |
| Overall dimension | mm | 1600×1840×2110 |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| FANUC oi mate-MD CNC system,and linear guide-way | HNC-21/22MD,FAUNC OI MD,GT-150M,GSK-983M or KND-1000M CNC system |
| High speed spindle unit(10000rpm) | |
| Pneumatic tools clamping and releasing system | |
| Air cooling | |
| Full splash guard | |
| Adjusting wedage and screw | |
| Spring chuck,Tool shank | |
| Interval auto-lubricating |
