4pair Twisted Pair AWG23 Cable Network Data Communication Cables UTP CAT6A CAT6
Basic Info.
Model NO.
cat6 cat5e
Cover Material
PVC
Type
CAT6A CAT6
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Brand
Wellde Kable
Size
AWG24 AWG23 22, 20, 18
AWG Size
AWG23
Conductor Size
0.58mm 0.56mm 0.54mm 0.52mm
OEM
Yes
Produceing Experience
15 Years
Export to
Malaysia, Argentina, Brazil Russia, Dubai
Hot Export
USA Phillippines, South Africa, Colombia
Transport Package
Carton,Coil, Drum or as Per The Customer′s Request
Specification
SGS
Trademark
Wellde Kable
Origin
Henan
HS Code
8544491100
Production Capacity
500km Per Month
Packaging & Delivery
Package Size
39.00cm * 38.00cm * 35.00cm
Package Gross Weight
7.000kg
Product Description
Data Signal Communication Cable Lan Cable- Cat5e Cat6 Cat7 Cat6A Network Cable1.No of Pair:4Paris,8 Insulated core wire,
Specification: AWG23
0.50mm, 0.52mm,0.54mm,0.56mm
Different size and specifications can be Customized as per your requirement.
2.Structure of data lan cable:
Copper stranded conductor,
HDPE insulation,Al foil+ braiding net,
PVC Inner sheathing,
PVC or PE outer sheathing.
3.Packing:
305meter or 500meter per coil/roll or per box / drum,out packing by carton and pallet
Different packing way can be designed and made as per customer's requirement
4.Technical specificaton for UTP Cat6:

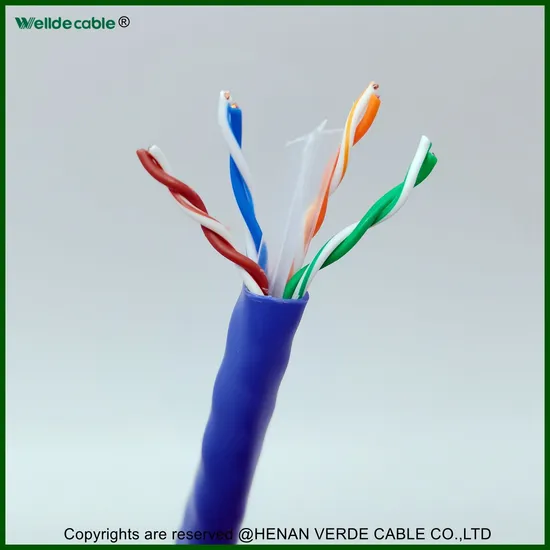

4 pair 23 AWG UTP Cat 6 cable
Type:Cat 6
Application: LAN Cable
Structure:
| Conductor | 23 AWG copper wire |
| Insulation | HDPE, white insulated wire with color marks |
| Pair color | White-blue/blue,white-orange,white-green/green,white-brown/brown |
| shielding | Non UTP type |
| Jacket | PVC,CMX,CM, CMR, Low smoke halogen, free for option, nominal diameter 5.8 +/- 0.5 mm |
| Rip cord | Without rip cord,or as per customers' option |
| printing | As per customers' requirements |
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties:
| Max pulling force | 80N |
| Min. bent radius | 65mm |
| Nominal weight | 50Kg/Km |
| Work temperature | -15~+70ºC |
| Install temperature | +5~+40ºC |
| Combustion property | IEC332.1,VW1,IEC332.3 or as per sheathing types |
| Product length | Standard length305m,or 500mm,1000mm as per requirements |
| Frequency (Mhz) | RL (dB) | ATT (Db/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | Property Impedance (ohm) |
| 0.772 | 19.2 | 1.8 | 76 | 74 | 70 | 100±15 |
| 1 | 20 | 2 | 74.3 | 74.3 | 67.8 | |
| 4 | 23 | 3.8 | 65.3 | 63.3 | 55.8 | |
| 8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 | |
| 10 | 25 | 6 | 59.3 | 57.3 | 47.8 | |
| 16 | 25 | 7.6 | 56.2 | 54.2 | 43.7 | |
| 20 | 25 | 8.5 | 54.8 | 52.8 | 41.8 | |
| 25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 | |
| 31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.8 | |
| 62.5 | 21.5 | 15.4 | 47.4 | 45.4 | 31.9 | |
| 100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 | |
| 200 | 18 | 29 | 39.8 | 37.8 | 21.8 | |
| 250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 |
5. Test report for Cat6 cable
Different Colored Cable can be Customized as per customer's requirement
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
HENAN VERDE CABLE CO.,LTD
Focus on Wires and Cables
Be Your Most Reliable Supplier
