Reinforced Spindle Drilling Machinery (Radial Drilling Machine Price Z3040X11B)

Product Description

Reinforced Spindle Drilling Machinery (Radial Drilling Machine Price Z3040X11B)

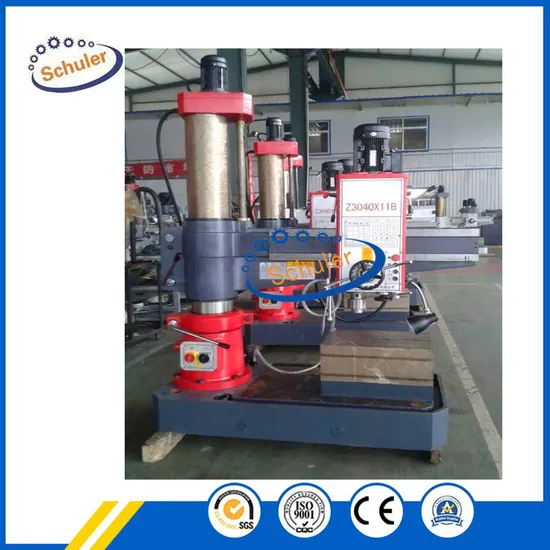

Product picture:
Performance characteristics:
The radial drilling machine model Z3040,Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Radial Drilling Machine Technical specifications:

Model	Z3040x11B
Max.drilling dia (mm)	40
Distance from spindle nose to table surface (mm)	330-1050
Distance from spindle axis to column surface (mm)	170-1100
Spindle travel (mm)	270
Spindle taper(MT)	4
Spindle speeds range(r.p.m)	75, 130,240,380,660,1200
Spindle speed steps	6
Spindle feeding range(mm/r)	0.10/0.16/0.25
Spindle feeding steps	3
Rocker rotary angle (°)	±90°
Main motor power (kw)	2.2
Maximum resistance to the spindle(N)	6300
Movements motor power (kw)	0.75
Net weight (kg)	1600
Overall dimensions (mm)	1500×705×2200

Brand Image:
As a professional manufacturer of drilling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Radial Drilling Machine Details pictures :
Radial Drilling Machine Assembly Workshop:
Our Radial Drilling Machine Workshop:
Radial Drilling Machine Packing and shipping:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
