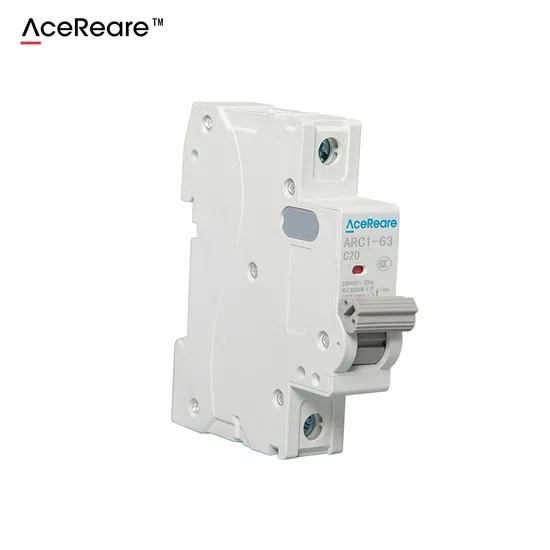

Arc1 Series Miniature Circuit Breaker Arc1-63-1p-10ka

Product Description

Product Description
Scope of application
ARC1-63 series high breaking small circuit breaker has advanced structure, reliable performance, high breaking capacity, beautiful and compact appearance, etc. The shell and three parts are made of impact resistant and high flame retardant materials. Suitable for AC 50Hz or 60Hz, rated working voltage below 400V, rated current below 63A. It is mainly used for overload and short-circuit protection of lighting, distribution lines and equipment in office buildings, residences and similar buildings, and also for infrequent line conversion under normal conditions.

Comply with the standard: IEC60898, GB10963.1
Operating temperature:-35C~+70C, the average temperature within 24h does not exceed +35*C
Altitude:S2000m
Atmospheric conditions:The relative humidity of the air at the installation site is ≤50% at +40C, 90% at maximum
Product Parameters
Main specifications and parameters

Rated operating voltage (V)	Rated current (A)	Polar Number	Rated short-circuit breaking capacity		Note
			Expected current of test line (A)	Expected current of test line (A)
			Ordinary type	High breaking type
230/400	6,10,16,20,25,32,40	1P,2P,3P,4P	6000	10000
400			6000	10000
230/400	50,63	1P,2P,3P,4P	6000	10000
400			6000	10000

Overcurrent decoupling characteristics

Test current (A)	Rated voltage (V)	Specified time	Expected results	Start State	Note
1.13In	All values	t≥1h	No unbuttoning	cold state	The current rises steadily to the specified value within 5s
1.45In	All values	t<1h	Disconnect	Thermal	The current rises steadily to the specified value within 5s
2.55In	In≤32A	1	Disconnect	cold state	Close the auxiliary switch to turn on the current
2.55In	In>32A	1	Disconnect	cold state	Close the auxiliary switch to turn on the current
5In(Type C)	All values	t≥0.1s	No unbuttoning	cold state	Close the auxiliary switch to turn on the current
10In(Type C)	All values	t<0.1s	Disconnect	cold state	Close the auxiliary switch to turn on the current
10In(Type D)	All values	t≥0.1s	No unbuttoning	cold state	Close the auxiliary switch to turn on the current
14In(Type D)	All values	t<0.1s	Disconnect	cold state	Close the auxiliary switch to turn on the current
