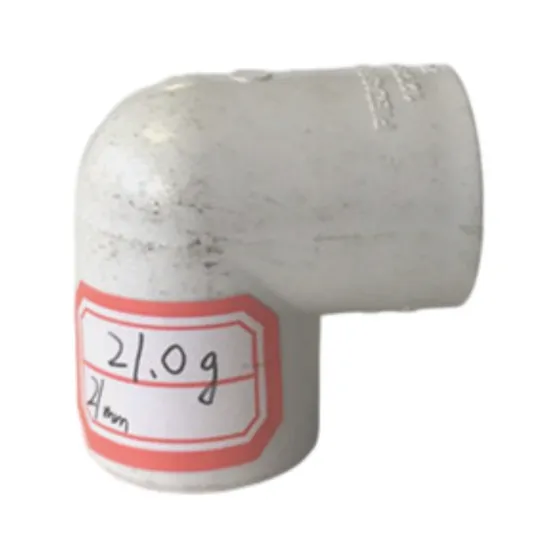

Elbow 90--PVC Pipe Coupler Making Machine

Product Description

Product Description
PVC pipe fitting injection moulding machine
Haichne has 20 years of experience in PVC pipe fitting production. Especially to the PVC pipe fitting design, PVC pipe fitting molds, PVC pipe fitting injection molding machines…
PVC pipe fitting injection molding is a very common raw material injection molding process. It has advantages such as high efficiency, durability, and high precision. Due to its enormous advantages, PVC plastic injection molding is the preferred raw material for PVC pipes and PVC pipe joints or fitting. It has widely applied in threading, electrician, water drainage, communication, agricultural irrigation, firefighting, electric power and other fields
There are many types of PVC pipe fitting: Coupler pipe fitting,H pipe fitting ,Elbow 90,45 elbow......
Features of Haichen PVC injection molding machine
Equipped with optimized hydraulic system, the iniection speed is greatly improved, the injection pressure can reach more than
290mpa. Optional accumulator injector, the injection speed can reach more than 400mm/s. Matching with special fast screw, achive higher plasticizing abilily. elmproved double cylinder balancedinjection system. Upgraded pre-molding, opening and dosing, ejection and all the other movements Detailed Photos
The Required Equipment 1.HAICHEN Injection Molding Machine
110 ton-700 ton
2.Mould
2-4cav
3.Auxiliary
Auto loaders/Chiller/Dryer/Crusher
4. Robot/conveyor

Product Parameters

INTERNATIONAL CLASS NO		HCK230
INJECTION UNIT
		A	B	C
Screw diameter	mm	45	50	55
Screw L/D ratio	L/D	22.2	20	18.2
Shot volume(theoretical)	cm3	398	491	594
Injiection weight(ps)	g	362	447	541
	oz	12.8	15.8	19.1
Injection pressure	Bar	2299	1862	1539
Injection rate	cm3/s	152	188	228
Plasticizing capacity	g/s	23	27	33
Screw speed (Max.)	r/min	200
CLAMPING UNIT
Clamping force	kN	2300
Space between tie bars(W×H)	mm	570×520
Platens size	mm	810×760
Opening stroke	mm	520
Min.Mold height	mm	220
Max.Mold height	mm	570
Distance between platens(daylight	mm	1090
Ejector stroke	mm	150
Ejector force	kN	80
OTHERS
Systerm pressure	Bar	175
Pump motor	KW	24
Heating power	kW	14
Oiltank cubage	L	200
Machine dimension(L×W×H)	m	5.8×1.4×2.2
Machine weight	t	7

Company Profile
Haichen Machine is a global manufacturer of high precision plastic injection molding machines. We are not just an injection molding machine manufacturer, also supply the solution for plastic production.
Our headquarters, centrally located in Ningbo and is an injection molding machine production factory that integrates production, sales, and after-sales service. Haichen machine is fully equipped to support sales, service, mold trials, customer training, maintenance… Our service teams are staffed with experienced, professional service technicians who are fully committed to supporting the success and profitability of our customers.
Haichen injection molding machine, ranging from 30 tons to 3000 tons, with more than 20 years of experience. Haichen machine generally stocks over 100 injection molding machines for quickly delivery.
Our Advantages
Packaging & Shipping
FAQ
Q: Types of PVC joints
A: Generally, PVC pipe fittings name have a lot. Also because PVC pipe sizes is different,so the PVC fitting also with many size.We divide PVC joints into five categories:
1. Water supply pipe fitting; 2. Drainage pipe fitting; 3. Electrical pipe fitting;4. PPR pipe fitting;5. PE pipe fitting;
Q: What is PVC material for pipe fitting
A: PVC pipe fitting material: PVC= polyvinyl chloride
PPR
PE
Except for the plasticizers that will be added to the PVC pipe fitting material, we will also add Caco3(Calcium carbonate).
Q: What's the difference between a flexible and rigid PVC?
A: 1. The content of plasticizers different
2. Different physical properties
3. Different uses
Q: PVC pipe fitting making process
A: PVC joints, classified by structure:
Direct connector: used to directly connect pipes and maintain the original direction when walking.PVC pipe coupling production.
Elbow joint: used to change the direction of pipelines, generally including 90 ° elbows, etc. plumbing pipe types injection molding machine.
Tee connector: used to connect three pipes and can achieve branching or convergence of pipes.
Union joint: used to connect the end of the pipeline to prevent water leakage.
