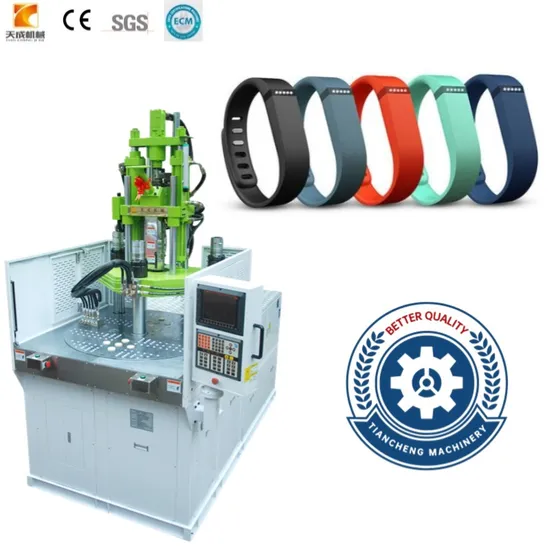

Vertical Rotary Table Injection Molding Machine for Watch Strap
| US$90,000.00-110,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TC-2200-2R
Type
Tube Head Injection
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Clamping Force
200 Tons
Maximum Injection Pressure (Kg/Cm2)
1075-925
Max-Distance Opening Mold (mm)
700/800
Max.Mold Size (mm)
600*550
Electric Power (Kw)
30
Machine Specification(M)
3.2*2.55*4.11
Weight of Machine (Kg)
13000
After Warranty Service
Video Technical Support, Online Support, Spare PAR
Transport Package
Plywood Case Packing
Specification
automatic
Trademark
TianCheng
Origin
Dongguan Guangdong
HS Code
8477209000
Production Capacity
50000sets/Year
Packaging & Delivery
Package Size
320.00cm * 255.00cm * 411.00cm
Package Gross Weight
13000.000kg
Product Description
Welcome to Dongguan Tiancheng Machinery Co., LtdProduct Description
Product Parameters
| Brand Name | Tiancheng | Style | VERTICAL | |
| Condition | New | Model NO. | TC-2200-2R | |
| Screw Diameter (MM) | 42--45 | Max.Hydaulic Pressure(Kg/cm3) | 140 | |
| Maximum injection Pressure (Kg/cm2) | 2176--1742 | Pump Output (L/min) | 76 | |
| Theoretical Shot Volume (Cm3) | 318--365 | Oil Tank Capacity (L) | 780 | |
| Maximum Shot Weight (G/oz) | 325/11.4 | Cooling Water Consumption(L/H) | 1000--1200 | |
| Injection Rate (Cm3/sec) | 220--260 | Electric Power (KW) | 30 | |
| Screw Speed (R/Min) | 0--300 | Total capacitance (KW) | 20.3 | |
| Screw Rate (MM) | 240 | Total Wattage (KW) | ||
| Nozzle Retraction Stroke (MM) | 330 | Machine Specification(M) | 3.2*2.55*4.1 | |
| Clamping Force (Ton) | 220 | Weight of Machine (KG) | 13000 | |
| Opening Force (Ton) | 180 | Plastic Processed | PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP | |
| Platen Size (MM) | 1496 | After-sales Service Provided | Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support | |
| Distance Between Tie-Bere (MM) | After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service | ||
| minimum Mold Thickness (MM) | 350/450 | Warranty | 1 year | |
| Opening Stroke (MM) | 350 | Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining, Other | |
| Max-Distance opening mold (MM) | 700/800 | |||
| Max.Mold Size | 600*550 | |||
| Ejector Force (Ton) | 4.6 | |||
| Ejector Stoke (MM) |
Packaging & Shipping
FAQ
| Q1: Are you a trading company or a manufacturer? |
| A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
| Q2: What's your warranty for the machine? |
| A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
| Q3: What's your Delivery Time? |
| A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
| Q4: Why choose TianCheng Machinery Co., Ltd.? |
| A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
