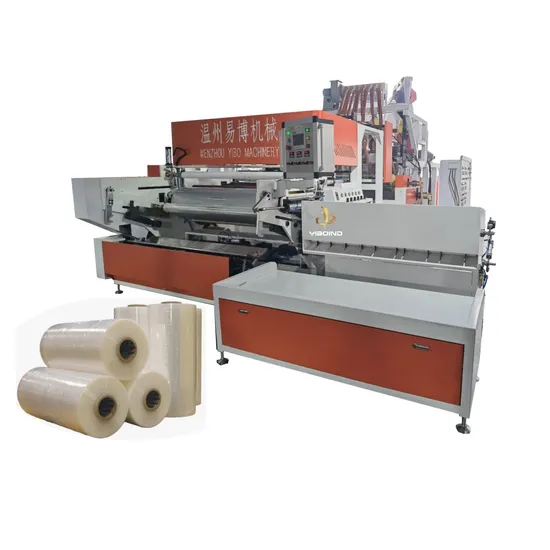

High Capacity 1500mm Co-Extrusion Cling Film LLDPE Stretch Film Machine
Basic Info.
Model NO.
YB
Type
Film Extruder
Plastic Processed
PE
Product Type
LLDPE Film
Feeding Mode
Particle
Assembly Structure
Separate Type Extruder
Screw
Multi-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Product
PE Stretch Film
Product Thickness
0.012-0.05mm.
Layer
ABC/ or Abcba
Ratio
25%/50%/25%(Adjustable)
Main Motor
22kw & 45kw & 22kw
Auto Loader
3PC
Transport Package
Film
Specification
1000-2000mm
Trademark
YIBO
Origin
China
HS Code
8477209000
Production Capacity
500set/Year
Packaging & Delivery
Package Size
1500.00cm * 1000.00cm * 1600.00cm
Package Gross Weight
1200.000kg
Product Description
Product ParametersDetailed technical parameters of the whole machine:
PRODUCT:PE STRETCH FILM
PRODUCT WIDTH:100-1500mm
PRODUCT THICKNESS:0.012-0.05mm.
RAW MATERIAL:LLDPE
LAYER: ABC/ or ABCBA
RATIO:25%/50%/25%(adjustable)
Maximum extrusion capacity of the whole machine (max):150-320Kg/h
Mechanical design line speed(max):200m/min
POWER:380V,50HZ
WHOLE POWER:138KW
FILM ROLLER DIA:Φ300MM
Specification of paper tube core:INNER φ 76* ,OUT φ 96mm.*3
Machine dimensions (for reference only):L11000MM*W5000MM*H3800MM
Weight of the whole machine (for reference only):15T
| Item name or item | Specification and model |
1500mm new type automatic high speed three / five layer co extrusion winding machine | φ65/90/65 |
| Cooling roll enlarged | |
| Overhead film treatment | |
| International advanced Coupling | |
| Stainless steel automatic suction machine | |
| Automatic loading and unloading of gas expansion shaft | |
| Automatic loading and unloading device (automatic threading, unwinding, pumping and venting) | |
| Double negative pressure vacuum box (in vacuum, heat and mist are removed to improve quality) | |
| Automatic hydraulic screen changer (save network changing time and improve security) | |
Detailed Photos
Packaging & Shipping
Certifications
Client
FAQ
Packaging & Delivery1.Packaging Details: wooden pallet or plastic film 2.Delivery Detail: 30-60 days 3.Port: Ningbo port 1.Where is your factory LocatedOur Factory Located in Ruian City ,Zhejiang Province ,China .It is about 40minutes by plane from Shanghai, about 5 hours by train fromShanghai .We are pleasured to pick up you when you arrived .2. What should we charge for your engineer?Our engineer is available to go to your country to install the machine for you. Buyer have to bear the charges including round-trip tickets, cost of visa and accommodations .Salary for one engineer is 80USD per day. 3. How long is your machine's warranty period?All our machine have one year guarantee, starting from finished installation.
