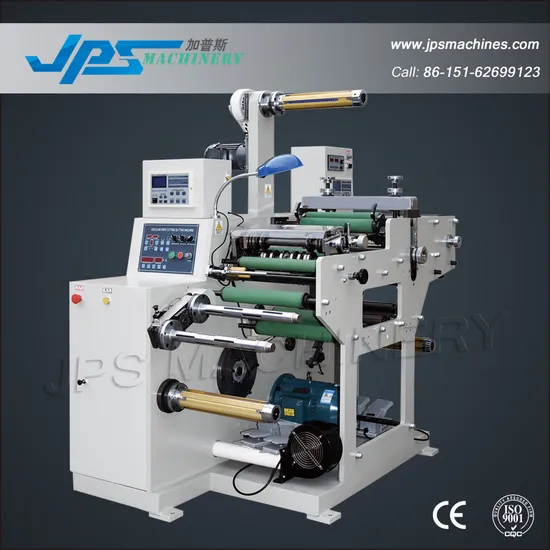

Jps-320c-Tr Automatic Blank Label Printing Paper Rotary Die Cutting & Slitting Rewinding Machine/ Auto Film Sticker Roll Die Cutter Slitter Rewinder
Basic Info.
Model NO.
JPS-320C-TR
Species
Rotary Die-Cutting Machine
Imprinting Type
Rotary Platen
Placing Form of Template
Circle
Die Cutting Tool
Magnetic Cylinder +Flexible or Engraved Cylinder
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products, Paper,Film,Foam,Blank Label,Sticker,Paper Roll
Rewind Mode
Turret Rewind
Unwind Tension
Semi-Automatic Constant Tension Control
Rewind Tension
Full-Automatic Constant Tension Control
Slitter Speed
120m/Min
Die-Cutting Speed
80m/Min
Die-Cutting Length
240-476mm
Max Unwind Diameter
700mm
Max Rewind Diameter
700mm
Unwind&Rewnd Shaft
1",1.5",3" Optional
Dimension
1.7X0.9X1.4m (L x W x H)
Die Cutter
Blank Roll: Label, Paper, Sticker, Foam, Film
Slitter Rewinder
Blank & Printed Roll: Label, Paper, Sticker, Foam
Transport Package
Export Wooden Case
Specification
CE
Trademark
JPS
Origin
Kunshan, China
HS Code
844110000
Production Capacity
300 Sets/Month
Packaging & Delivery
Package Size
180.00cm * 123.00cm * 198.00cm
Package Gross Weight
1000.000kg
Product Description
Jps-320c-Tr Automatic Blank Label Printing Paper Rotary Die Cutting & Slitting Rewinding Machine/ Auto Film Sticker Roll Die Cutter Slitter Rewinder ( Turret Rewinder)Feature:
This product is suitable for blank label. Die cutting,slitting , rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Technical Parameters:
| Model | JPS-320C-TR |
| Slitting speed | 120m/min |
| Die cutting speed | 80m/min |
| Die cutting length | 240-476mm |
| Max paper width | 320mm |
| Max Unwind diameter | 700mm |
| Max rewind diameter | 700mm |
| Dimension | 1.7x 0.9x1.4m (LxWxH) |
| Machine weight | About 720kg |
Functions:
1. Advanced turret rewinder for two shafts
2. Automatic metering and counting
3. Semi-automatic tension control for unwind, waste draining
4. Automatic tension control for rewind
5. Foot switch available .
Optional functions:
1.Lamination 2. Double-station 3.clockwise and counter-clockwise rewinder
Standard configuration:
1. One rotary die cutting station
2. One slitting station
3. With 1 pc 3" unwinding shaft
2 pcs 1.5" rewinding shafts
one pc 1" rewinding shaft
4. With meter/number counter
5. With two photoelectric eyes
6. With 8 pcs rotary knife
7. One magnetic brake, two magnetic clutches
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
JPS-320C-TR Machine Configurations:
JPS-320C-TR Machine Versions:
JPS-320C-TR Machine Applications:
