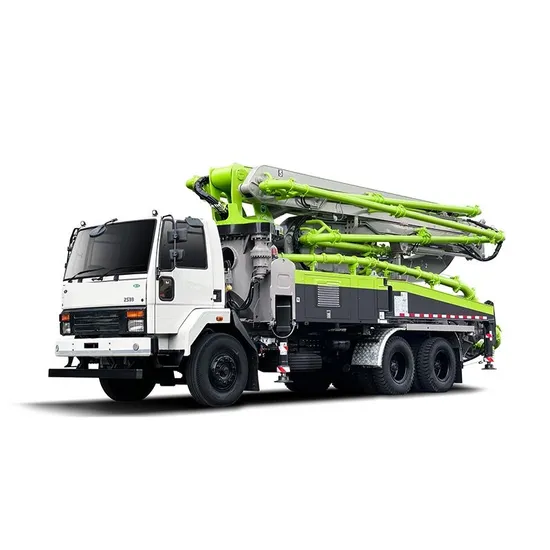

Zoomlion Concrete Pump Truck 56m Zlj5441thbkf 56X-6rz Concrete Pumps for Sale
Basic Info.
Model NO.
59X-6RZ
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
2100mm
Vibrating Amplitude
2.6mm
Condition
New
Color
Green
Maximum Outlet Pressure of Concrete
11.3MPa
Rated Working Pressure
42MPa
Pumping Frequency
26min-1
Concrete Cylinder Borextravel
Φ260X 2100mm
Maximum Cloth(Height/Radius/Depth)
56/51/40.2m
Angle of Rotation
±270°
Outrigger Span(Frontxafterxlongitudinal)
9590*12850*10720mm
Zlj5441thbkf 56X-6rz
China VI
Max. Reach Vertical
56m
Max. Reach Depth
40.2m
Pipeline
DN125/5.5
Max. Reach Horizontal
50.8m
Min. Unfolding Height
14.1m
End Hose Length
3m
Delivery Cylinder
260mm
Transport Package
Standard Ocean Freight
Specification
9590*12850*10720mm
Trademark
Top brand
Origin
China
HS Code
8705909100
Production Capacity
350piece/Year
Packaging & Delivery
Package Size
1072.00cm * 959.00cm * 1285.00cm
Package Gross Weight
32000.000kg
Product Description
product titleZoomlion ZLJ5441THBKF 56X-6RZ Siqiao 56m Sinotruk Shandeka Guoliu Pump Truck Product Description
• Compact in design, 56m pump mounted on 4-axle truck, total weight is within the limit of truck load.• Efficient pump unit: consist of 2 Rexroth 180 main pumps, which generates 90 bar pressure on concrete with smooth flow of 180m3/h.• Agile placing boom with 6 arms gives a wide work range.• Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.• Rich in configurations and high quality components.
Energy saving and environmental protection: the whole vehicle size is optimized and designed to reduce the body weight and energy consumption. Meanwhile, advanced emission control technology is adopted to meet the emission standards.
Flexible and diversified: with 191° jacking folding arm, it can be rotated 360°without dead angle, adapting to the needs of different working environments.
Easy to operate: equipped with advanced hydraulic control system and intelligent electric control system, it is easy to operate and can precisely control the pumping process.
Comfortable and safe: the pump truck cab is reasonably laid out with a wide field of vision, equipped with air conditioning and adjustable seats, providing good driving comfort and safety.
Product Parameters
| Main performance parameters | Unit | Value |
| Maximum theoretical conveying capacity | m3/h | 180 |
| Maximum outlet pressure of concrete | MPa | 11.3 |
| Rated working pressure | MPa | 42 |
| Pumping frequency | min-1 | 26 |
| Concrete cylinder borexTravel | mm | Φ260x 2100 |
| Structural form | / | 59X-6RZ |
| Maximum cloth(Height/Radius/Depth) | m | 56/51/40.47 |
| Angle of rotation | ° | ±270° |
| Outrigger span(FrontxAfterxLongitudinal) | mm | 9590*12850*10720 |
| Product type spectrum | ||
| Product model | Chassis brand | Emission standards |
| ZLJ5441THBKF 56X-6RZ | Zhongqi Shandeka | China VI |
| ZLJ5440THBJF 56X-6RZ | Liberation | China VI |
| ZLJ5440THBBF 56X-6RZ | Run quickly/Benz | China VI |
