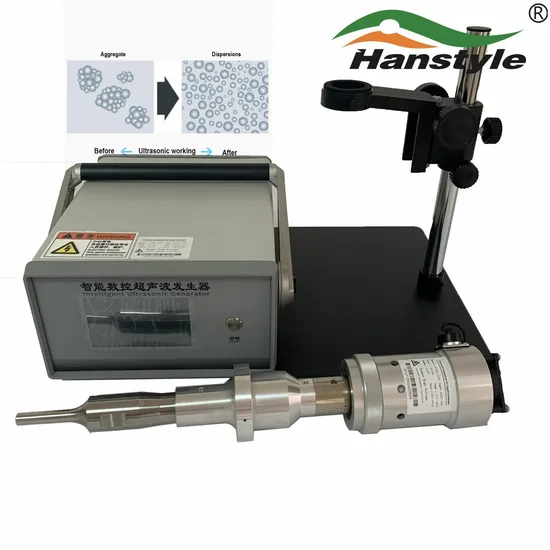

20kHz High Power Lab Ultrasonic Extraction Homogenizer for Liquid Emulsification and Cavitation

Product Description

20kHz High Power Lab Ultrasonic Extraction Homogenizer For Test Liquid Emulsification And CavitationProduct Description
Ultrasonic vibration components mainly include high-power ultrasonic transducers, horns and tool heads, which are used to generate ultrasonic vibrations and transmit vibrational energy into liquids. The transducer converts the incoming electrical energy into mechanical energy, which is ultrasound.
Ultrasonic homogenizers are powerful tools for mixing and homogenizing solid-liquid and liquid-liquid suspensions. Ultrasonic homogenization is a mechanical process used to reduce particles in a liquid, making them uniformly fine and well-distributed. Hanspire offers powerful ultrasonic homogenizers for laboratory and industrial production scale applications. Product Specification

Model	H-UH20-1000S	H-UH20-1000	H-UH20-2000	H-UH20-3000	H-UH20-3000Z
Frequency	20KHz	20KHz	20KHz	20KHz	20KHz
Power	1000 W	1000 W	2000W	3000W	3000 W
Voltage	220V	220V	220V	220V	220V
Pressure	Normal	Normal	35 MPa	35 MPa	35 MPa
Intensity of sound	>10 W/cm²	>10 W/cm²	>40 W/cm²	>60 W/cm²	>60 W/cm²
Processing capacity(L/H)	1.0-4.0	5.0	20.0	50.0	100.0
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Generator	Digital type	Digital type	Digital type	Digital type	Digital type

Product Application
1.Reaction Acceleration - cavitation accelerates chemical and physical reactions.
2.Fine Particle Dispersion - e.g. nanoparticle processing
3.Disruption and Cell Lysing - will break open biological tissues and cells to extract enzymes and DNA, prepare vaccines.
4.Ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently through a cylindrical reactor.
5.Homogenization - making uniform mixtures of liquids or liquid suspensions.
6.Emulsification - processing foods, pharmaceuticals etc.
7.Dissolution - dissolving solids in solvents.
8.Degassing - removing gases from solutions without heat
Product Advantage
1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.Product Details Display
