Freezing Point of Paraffin Waxes(Vaseline) Tester

Product Details

Product Description

Product Description

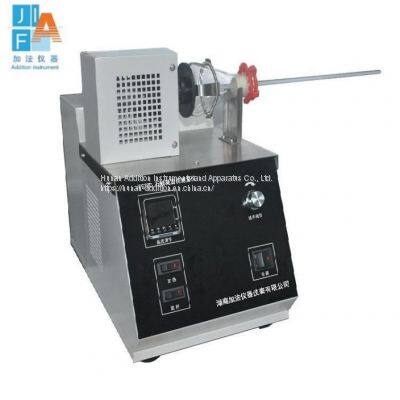

Freezing Point of Paraffin Waxes(Vaseline) Tester 　
ASTM D938
Product Model: JF938
Product Introduction
Freezing point is a characteristic of paraffin products that is of interest to many paraffin users. This process is the temperature at which the test sample cools to solidify or stop flowing. At this temperature, petroleum waxes may be solid or near-solid, or semi-solid, and are fairly soft, depending on the composition of the paraffin or petrolatum being tested. When the test sample is petrolatum, coagulation is related to the gel structure of the sample when cooled. The test principle of the instrument is: melt the paraffin sample and stick the paraffin drop on the mercury ball of the thermometer, and use a preheated flask as an air jacket to cool the petroleum wax stuck to the mercury ball at a rated speed until it condenses, the freezing point The freezing point is the temperature observed when the paraffin drop ceases to flow, as measured by a drop in temperature with a thermometer. The instrument is also suitable for testing Vaseline.
Technical Parameter
1. Applicable standards: ASTM D938, ISO2207, SH/T0132
2. Heating method: metal bath heating
3. Temperature control method: digital display PID temperature controller
4. Rotation mode: DC motor drive
5. Rotation speed: 2.5s/r
6. Machine power: 800W
7. Working power supply: AC220V 50HZ
8. Instrument size: 550*510*550mm
9. Net weight: 20KG
Main Feature
1. Heating the sample in a metal bath is safe, environmentally friendly, and has no open flame;
2. The motor drives the sample to rotate in the horizontal axis direction to reduce human error;
3. The rotation speed can be adjusted according to requirements;
4. The blessing device can be easily operated;
5. High-quality Omron PID thermostat, digital display temperature, accuracy 0.1℃
6. Matching special thermometer and test tube stopper;
