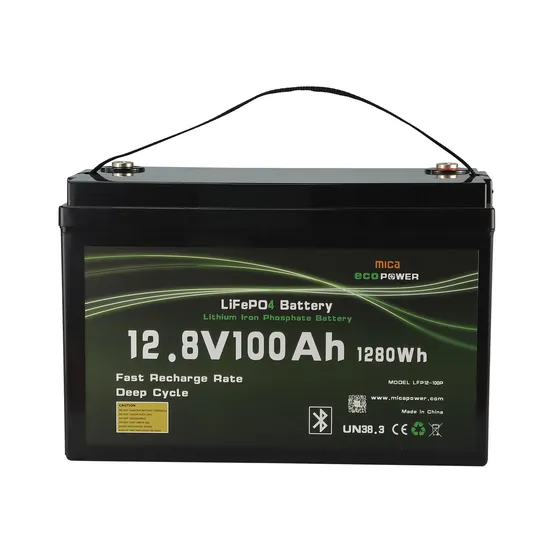

CE Un Saber 12V 100ah 100A LiFePO4 Battery 12.8V Deep Cycle Golf Cart ATV Lithium Battery

Product Description

Product Description

Items	Parameter
Battery model	MC-12100F-B-H
Nominal voltage	12.8V
Minimum capacity	100Ah@25ºC
Charging voltage	14.6V
Discharging cut-off voltage	10V
Standard charging	0.2C /14.6V
Max charging	1C /14.6V
Standard discharging	100A/10V
Max discharging	continuous discharge	100A/10V
	peak discharge	200A/10V
Standard Charging mode	CC/CV
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time )	-10ºC~25ºC	(12 months ≥85% )
	-10ºC ~45ºC	(6 months ≥85% )
	-10ºC~55ºC	(1 month ≥90% )
	20±5ºC is the recommended storage temperature
Visual Inspection	There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell.
Self-discharge Rate	<2% per month

Recommend

Battery model	MC-1270F
Nominal voltage	12.8V
Minimum capacity	70Ah
Charging voltage	14.6V
Discharging cut-off voltage	10V
Standard charging	0.2C
Max charging	1.0C
Dimension	260*168*215mm
Weight	8.5kg
Max discharging	continuous discharge	1.0C
	non-continuous discharge	2.0C

Battery model	MC-24150F
Nominal voltage	25.6V
Minimum capacity	150Ah
Charging voltage	29.2V
Discharging cut-off voltage	20V
Standard charging	0.2C
Max charging	1.0C
Dimension	522*240*222mm
Weight	33kg
Max discharging	continuous discharge	1.0C
	non-continuous discharge	2.0C

Battery model	MC-48100F
Nominal voltage	51.2V
Minimum capacity	100Ah
Charging voltage	58.4V
Discharging cut-off voltage	40V
Standard charging	0.2C
Max charging	1.0C
Dimension	482*460*133mm
Weight	45kg
Max discharging	continuous discharge	1.0C
	non-continuous discharge	2.0C

Battery model	MC-S-10kwh
Battery Module	48100F-5kwh
Nominal voltage	51.2V
Minimum capacity	200Ah
Charging voltage	58.4V
Discharging cut-off voltage	40V
Standard charging	0.2C
Max charging	1.0C
Dimension	655*413*413mm
Weight	146kg
Max discharging	continuous discharge	1.0C
	non-continuous discharge	2.0C

Company ProfileMica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in battery business. Facility Aare: 15000 square meters; Employee: 1000.We specialize in manufacturing and exporting lithium-polymer batteries, lithium-ion batteries, LiFePo4 rechargeable batteries, rechargeable batteries for 3C consumer electronics such as TWS earphone,Bluetooth speaker, flashlight, POS machine energy storage system, power tool, BMS and all kinds of PCM for batteries and OEM/ODM battery packs. We also support customers with an outstanding service and a customized POS concept.
Certifications
Packaging & Shipping
FAQ
1. Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.
2. Q: Do you have any protection for battery pack?
A: Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection3. Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days.
Or DDP service, delivery time is 11-15 business days.
Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
