Vmc7032 High Precision Automatic CNC Milling Machine

Product Description

NOTE: The currency exchange rate fluctuates greatly, please consult customer service for the best price.

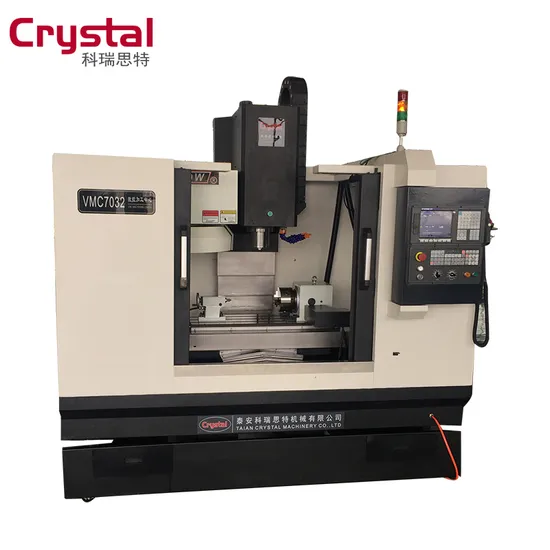

VMC7032 high precision automatic CNC Milling Machine
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping and boring etc.
VMC7032 Vertical Machining Center Features:
1.Taiwan BT40 Spindle
2.Taiwan ball screw and locking nut
3.Umbrella type tool Magazine, 12 tools
4.Fully-guarded type machine
VMC7032 Vertical Machining Center Specifications:

Specifications	Unit	VMC7032
Table Size (L*W)	mm	800×320
Travel of x,y,z axis	mm	610/320/400
Max, table load	kg	400
T-slot Size	mm	3-14-100
Center distance	mm	100
Spindle taper	--	BT40
Spindle center to Column guide distance	mm	376
Spindle end face to table distance	mm	130-530
Max speed	rpm	8000
Spindle motor power	KW	3.7/5.5
Spindle drive	--	Belt transmission
Positioning accuracy	mm	0.015
Repeat Positioning accuracy	mm	0.0075
Rapid feed of X/Y/Z	mm/min	1000
Cutting feed of X/Y/Z	mm/min	6000
Tool Magazine Capacity	tools	12
Max. Tool size	mm	100
Max. Tool weight	kg	8
Machine Weight	Kg	3000
Dimension	mm	2430*2100*2450
Power	--	3 phase 380V,

VMC7032 Optional Configurations:
1. System: KND2000M, FANUC, Siemens etc.
2. Spindle speed: 10000rpm
3. Fourth axis with 125°dividing head
4. Fifth axis
5. 16 pieces arm type ATC
FAQ
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A: We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A:Yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A:We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on tacrystal.en.made-in-china.com, or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:About your cnc machining center, I want to know if they can install the 4th axis.
A:Our cnc machining center can support the 4th axis. You can tell us the working
table size or the travel of X,Y,Z axis of machining center you need. We will give
you a recommendation about machine model.
