Mobile Crusher Mining Equipment Mobile Crushing Screening Plant

Product Description

Product Description

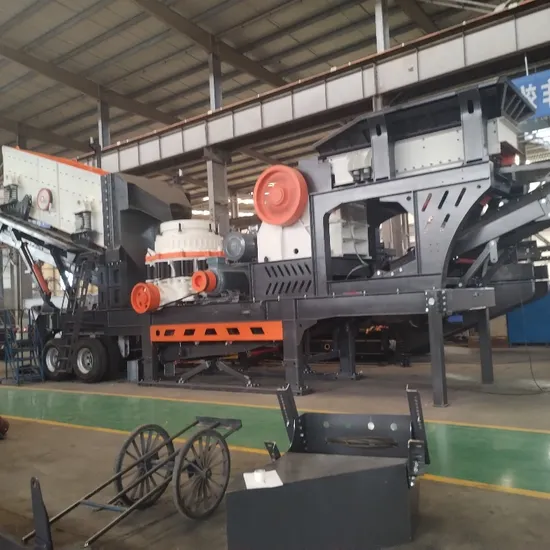

The Mobile Cone Crusher Plant has reliable performance and convenient maintenance. Mobile Cone Crusher is equipped with a high-performance cone crusher, high crushing efficiency, versatility, excellent crushing product quality, and has a light and reasonable structural design. Reliable and stable quality assurance meets the requirements of coarse, medium and fine material crushing and screening. It has established a good quality reputation for new and old customers at home and abroad.
Product Advantages
1. Mature Modular Design
The mobile cone crusher adopts a new modular design concept. Multiple models share a common frame, which allows for easy interchange between different host systems of the same model. Different production needs can be easily met only by replacing the host system. The diversified design is more worry-free.
2. Flexible and Diverse Configuration Schemes
The mobile cone crusher equipment space system configuration is complete. It can work alone in one stage of crushing. It can also work together with multiple equipment, such as a mobile jaw crusher and mobile sand-making machine, to meet the needs of multiple crushing and screening combinations.
3. Comprehensive Combination, Personalized Solution Customization
The mobile cone crusher plant includes seven modules and 24 models. It is fully combined. The output, input, output, etc., can all be selected according to the host cone crusher. Customizing personalized solutions highlights the humanized design.
4. Intelligent, Worry-Free and Labour-Saving Operation
The mobile cone crusher has a flexible parking system, which can quickly enter the working mode. At the same time, it can control the equipment feeding and discharging, conveyor belt folding and other actions through the hydraulic system. The PLC intelligent operating system is safe, reliable, and easy to operate.
5. Environmental Protection, Energy Saving and Fuel Saving
The mobile cone crusher has added water spray dust suppression devices, iron removal devices, silencers, etc., which can meet environmental protection standards without pressure. It adopts an oil-electric hybrid operation, energy and fuel saving, and multiple energy supply methods. Users have more freedom to choose, and the equipment is more efficient.

Working Principle

The working principle of the mobile cone crusher is that the material is evenly transported to the cone crusher by the feeder. After the cone crusher is initially crushed, a closed-circuit system is formed through the circular vibrating screen to realize the cyclic crushing of the material. The finished material is output by the conveyor for continuous crushing. The wheeled mobile cone crusher + mobile vibrating screen plant can remove the circular vibrating screen according to the actual production needs to realize the direct initial crushing of the material. It is convenient and flexible to use with other crushing equipment.

Mobile Cone Crusher Plant Technical Parameters
Standard Model	Corollary Equipment	Corollary Equipment			Overall Dimension (mm)
		Model	Feeding Size (mm)	Capacity (t/h)
S-CS75	3YZK1848	CS75	≤160	59-163	12600×2800×4400
S-CS110	3YZK1860	CS110	≤178	100-200	13800×3000×4400
S-CS160	3YZK2160	CS160	≤188	132-253	13800×3000×4400
S-CS220	3YZK2160	CS220	≤230	215-330	14500×3000×4500
S-H420	3YZK1848	SH420	≤240	85-170	12600×2900×4400
S-H430	3YZK1860	SH430	≤360	120-345	13800×3000×4500
S-H440	3YZK2260	SH450	≤450	255-605	14800×3200×4600
S-HP200	3YZK2160	SHP200	≤185	145-250	14200×3000×4500
S-HP300	3YZK2260	SHP300	≤230	180-300	16500×3200×4600
S-HP400	3YZK2260	SHP400	≤230	220-380	16500×3200×4600

Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.


Packaging & Shipping

Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
