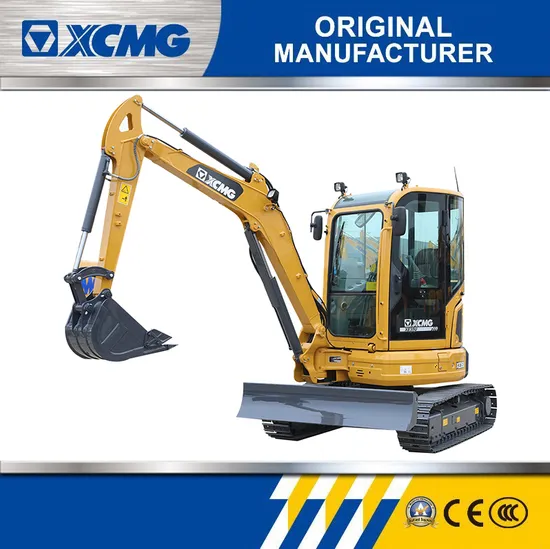

XCMG Chinese Xe35u Used 3 Ton Mini Crawler Excavator Prices

Product Description

XCMG Chinese Xe35u Used 3 Ton Mini Crawler Excavator Prices
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
* More energy-conservation and environmental protection
By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.
* More efficient return Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.
* More reliable and durable Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.

[Product Parameter]

Model				Metric unit	XE35U
Operating weight				kg	4200
Bucket capacity				m3	0.11
Engine	Model				3TNV88-BPXG
	Displacement Standard				Tier IIIA
	Style		Direct injection	---	√
			Four strokes	---	√
			Water cooling	---	√
	No. of cylinders			---	3
	Output power			kW/ r/min	21.6/2400
	torque/speed			N.m	107.2/1444
	Displacement			L	1.642
Main performance	Travel speed(H/L)			km/h	3.6/2.2
	Gradeability			%	58
	Rotating speed			r/min	8.5
	Ground pressure			kPa	36.6
	Bucket digging force			kN	24.6
	Arm crowd force			kN	17.8
Appearance size	A	Overall length		mm	4960
	B	Overall width		mm	1740
	C	Overall height		mm	2535
	D	Width of platform		mm	1585
	E	Length of crawler		mm	2220
	F	Overall width of chassis		mm	1740
	G	Width of crawler		mm	300
	H	Track length on ground		mm	1440
	I	Crawler gauge		mm	1721
	J	Clearance under counterweight		mm	587
	K	Min. ground clearance		mm	297
	L	Min. tail swing radius		mm	870
Working scope	A	Max. digging height		mm	5215
	B	Max. dumping height		mm	3760
	C	Max. digging depth		mm	3060
	D	Max. vertical wall digging depth		mm	2260
	E	Max. digging reach		mm	5415
	F	Min. swing radius		mm	2170

[Product Picture]
[Company Information]
[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
