High Voltage Substation Plate Punching Machine FINCM Steel Plate CNC Hydraulic Hole Press Punching Marking Machine

High Voltage Substation Plate Punching Machine FINCM Steel Plate CNC Hydraulic Hole Press Punching Marking Machine

US$36,000.00-39,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PP123
Structure
Cross
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
2
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Plate Size,Max.
775*1500mm
Thickness of Plate
5-25mm
Max.punching diameter
30mm
Punching Force
1200 KN
Marking Force
1000 KN
Characters Number
16
Quantity of CNC Axes
2
Stroke of X Axis Speed
0-18m/Min
Stroke of Y Axis Speed
760mm-18m/Min
Motor Power of Oil Pump
22kW
AC Servo Motor Power of X Axis
2kW
AC Servo Motor Power of Y Axis
2kW
Highest Pressure of High-Lift Pump
24MPa
Volume of Oil Tank
320L
Cooling Type
Water Cooling
Transport Package
Container
Specification
About 3600*2800*1870(mm)
Trademark
FINCNC Machine
Origin
Shandong
HS Code
8459210000
Production Capacity
350 Sets

Product Description

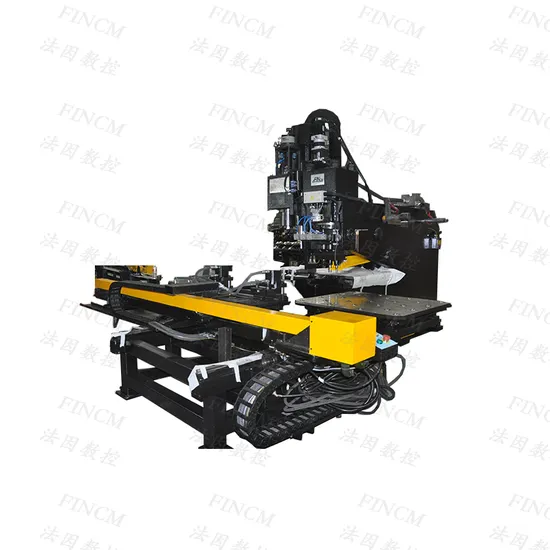

PP123 FINCM Automatic CNC Hydraulic Punching Machine For Plate Product Description

CNC hydraulic flat punching machine is mainly used in steel structure, electric power and automobile industries
The punching of the plate can be carried out after the workpiece is clamped once, so as to ensure the position accuracy of the hole.
High efficiency and automation, especially suitable for multi variety processing.

Product Parameters

Workpiece size Thickness 5-25mm
Max. size of workpiece 1500×775mm
Punching capacity Punch force 1200KN
Max size diameter Φ30mm
Punching diameter × thickness For Q235 steel σ≤420MPa Φ30×25mm
For Q420 steel σ≤680MPa Φ25.6×20mm
Capacity of marking Marking force 1200KN
Character size 14×10mm
Quantity of characters per unit 16
Quantity of CNC axes 2
Stroke of X axis---speed 0-18m/min
Stroke of Y axis---speed 0-18m/min
Motor power Motor power of oil pump 22KW
AC servo motor power of X axis 2KW
AC servo motor power of Y axis 2KW
Hydraulic system Highest pressure of high-lift pump 24MPa
Work-pressure of high-lift pump 20MPa
Work-pressure of low-lift pump 5.5MPa
Volume of oil tank 320L
Cooling type Water Cooling
Pneumatic system Work pressure Max. 0.6MPa
Min. 0.5MPa
Electric parameters Type 3 Phase Electricity
Normal Pressure 380V
Normal Frequency 60Hz
Total power 26KW
Overall dimensions (L×W×H) 3600×2800×1870mm
Net weight of the machine About 7500kg

List of the Key Outsourced Components:
No. Name Quantity Country
AC Servo Motor Delta Taiwan China
PLC Delta
Electromagnetic unloading valve ATOS Italy/Taiwan China
Relief valve ATOS
Electromagnetic directional valve JUSTMARK Taiwan China
Bus bar SMC/CKD Japan
air valve SMC/CKD
Cylinder SMC/CKD
Duplex Air TAC Taiwan China
computer LENOVO China

Relateed Products
Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
