Salty Stick Biscuit Production Line, Sugar Cookies Machine Equipment

Product Description

Salty Stick Biscuit Production Line, Sugar Cookies Machine Equipment

Project Description
Product categories: tough biscuits,
Effective working width: 620mm
Output: toughness about 200 kg/hour
2. Equipment list (specification: 620mm)

No	Specification	Device name	Qty
1	620	Feeder	1 item
2	620	One roll	1 set
3	620	Second rolling	1 set
4	620	Three rolling	1 set
5	620	Roll cutter	1 set
6	620	Return machine	1 set
7	620	recycling machine	1 set
8	620	Furnace feeding machine	1 set
9	620	Spreader	1 set
10	620	into the oven rack
11	620	Fully automatic gas hot air circulation oven (28 meters) Oven mesh belt automatic correction Oven mesh belt mechanical correction Mesh belt steel brush cleaning machine	1 set
12	620	Take out the oven rack	1 set
13	620	Baking machine	1 set
14	620	Cooler	1 set

3. Technical parameters
3.1. Basic configuration
Inverter brand: Delta
Electrical appliance brand: Chint
Molding machine protective cover material: stainless steel 1.5mm
Forming machine wall panel: A3 carbon steel plate 20mm
Molding machine control mode: button control or touch screen control
Reducer brand: Domestic-Miao
Oven heating mode: hot air circulation
Oven hearth material: 2-2.5mm cold rolled plate
Oven appearance protective cover: 1.2mm stainless steel
3.2. Single machine configuration

No	Device name	Technical Parameters
1	Dough mixer	S type, one knife type each Single kneading: 200KG Closing time: 20-35 minutes Stirring speed: 20 rpm And fabric bucket: made of stainless steel 3mm Base wall panel: carbon steel, 10mm thick Operation form: button Motor: powerful motor Power: 13.2KW Overall dimensions: 1800*800*1650 Weight: 1640KG
2	Three roller feeder	Power: 2.2K Roller: 3 customized cold rolls, diameter 230mm, thickness ~30mm, working width 620mm Conveying driving roller: 45# seamless steel pipe, galvanized, diameter 160mm Conveying roller: 45# seamless steel pipe, diameter 60mm Conveyor belt: canvas Deviation correction: Cylinder automatically corrects deviation Appearance protective cover: 1.5mm stainless steel Scraper material: 65Mn (commonly known as spring steel) Chain: Customized, carbon steel Control: Frequency conversion or PLC, Brand: Delta Reducer brand: Miao
4	Second rolling	Power: 2.2KW Cold rolling roller: 2 pieces, diameter 230mm, thickness ~30mm, working width 620mm Conveying driving roller: 45# seamless steel pipe, galvanized, diameter 120mm Conveying roller: 45# seamless steel pipe, diameter 60mm Conveyor belt: canvas Deviation correction: Cylinder automatically corrects deviation Appearance protective cover: 1.5mm stainless steel Scraper material: 65Mn Chain: Customized, carbon steel Control: Frequency conversion or PLC, Brand: Delta Reducer brand: Miao
5	Second rolling	Power: 2.2KW Wall panel: 25mm thick A3 board Cold rolling roller: 2 pieces, diameter 230mm, thickness ~30mm, working width 800mm Conveying driving roller: 45# seamless steel pipe, galvanized, diameter 120mm Conveying roller: 45# seamless steel pipe, diameter 60mm Conveyor connection plate: 10mm thick A3 plate, galvanized Conveyor belt: canvas Deviation correction: Cylinder automatically corrects deviation Appearance protective cover: 1.5mm stainless steel Scraper material: 65Mn Chain: Customized, carbon steel Control: Frequency conversion or PLC, Brand: Delta Reducer brand: Miao
5	Three rolling	Power: 4KW Cold rolling roller: 2 pieces, diameter 230mm, thickness ~30mm, working width 620mm Conveying driving roller: 45# seamless steel pipe, galvanized, diameter 120mm Conveying roller: 45# seamless steel pipe, diameter 60mm Conveyor belt: canvas Deviation correction: Cylinder automatically corrects deviation Appearance protective cover: 1.5mm stainless steel Scraper material: 65Mn Chain: Customized, carbon steel Control: Frequency conversion or PLC, Brand: Delta Reducer brand: Miao
6	Roll cutter	Power: 3KW Working width 620mm Demold roller: 45# seamless steel, covered with rubber, diameter 200mm Mold: 2 pieces, diameter 145mm Adjustment method: hand wheel adjustment Conveying driving roller: 45# seamless steel pipe, galvanized, diameter 120mm Conveying roller: 45# seamless steel pipe, diameter 60mm Conveyor connection plate: 10mm thick A3 plate, galvanized Conveyor belt: canvas Deviation correction: Cylinder automatically corrects deviation Appearance protective cover: 1.5mm stainless steel Scraper: 65Mn Chain: carbon steel Control: Frequency conversion or PLC, Brand: Delta Reducer brand: Miao with 2 molds
7	Return machine	Power: 1.1KW Conveying driving roller: 45# seamless steel pipe, galvanized, diameter 120mm Conveying roller: 45# seamless steel pipe, diameter 6 Conveyor belt: canvas Deviation correction: Cylinder automatically corrects deviation Appearance protective cover: 1.5mm stainless steel Scraper material: 65Mn Chain: Customized, carbon steel Control: Frequency conversion or PLC, Brand: Delta Reducer brand: Miao
8	recycling machine	Power: 1.12KW Rack: stainless steel square tube 30*60 Side panel: Made of 2.0 stainless steel Idler: Lightweight roller Conveyor: PU belt
9	Furnace feeding machine	Power: 1.5KW Conveying driving roller: 45# seamless steel pipe, galvanized, diameter 120mm Conveying roller: 45# seamless steel pipe, diameter 60mm Conveyor belt: canvas Deviation correction: Cylinder automatically corrects deviation Appearance protective cover: 1.5mm stainless steel Scraper material: 65Mn Chain: Customized, carbon steel Control: Frequency conversion or PLC, Brand: Delta Reducer brand: Miao
10	stove rack-in	Length: 1.8 meters Large roller diameter: 700mm Material: 14mm thick A3 plate, rolled Mesh belt tightening : lift + motor 0.55KW Correction device: cylinder automatic correction + mechanical correction Protective cover: 2.0mm1.2mm stainless steel 201

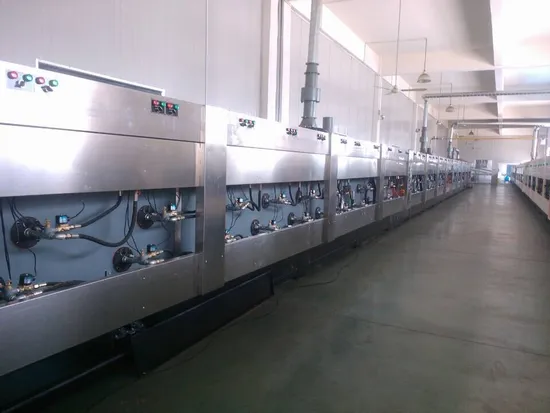

11	Fully automatic gas hot air circulation oven (28 meters)	three. heat source 1. Natural gas 4. Hot air circulation form Hot air circulation heating Control section Temperature control , full power when heating, electricity consumption at constant temperature is about one-third of that at heating, fully meeting energy saving requirements. Flue - the flue in each temperature zone is independently controlled. The deflector is extremely sensitive and is a relatively advanced flue discharge device. Transmission - the speed of the furnace mesh is adjusted through the frequency converter, and the furnace mesh expansion device relies on 3air pressure, which acts on the cylinder. A certain tension is always maintained, and the offset adjustment device is relatively advanced. It uses a pair of small cylinders to frequently travel back and forth to always keep the mesh belt in the middle of the furnace. Furnace structure - referring to several advanced manufacturing methods in Europe, each furnace section is 2.5M, and the entire furnace section is completed in the factory. First, it improves the manufacturing accuracy of the furnace body; second, it greatly reduces the workload of on-site installation. The whole line of the furnace body is very smooth and the appearance is quite beautiful. 5. 'The outer layer is 2mm, the inner layer is 2.5mm thick furnace steel plate, the furnace top is 300mm, both sides are 250mm thick aluminum silicate high insulation cotton, and the exterior is decorated with stainless steel plates, which is beautiful and elegant. 6. The entire oven is divided into three temperature zones. Each temperature zone is equipped with a set of combustion units. Each burner has a power of 500W. and an air consumption of 8-20 cubic meters per hour.
12	oven racks-out	Length: 1.2 meters Transmission power: 3KW Large roller diameter: 700mm Material: 14mm thick A3 plate, rolled Correction device: cylinder automatic correction + mechanical correction Protective cover: 2.0mm1.2mm stainless steel 201
13	Baking machine	Length: 1.5 Stainless steel rack side panel Stainless steel mesh belt conveyor Power: 0.75KW
14	Cooling and conveying	Arrange in sections according to the conditions of the factory building. Supporting feet: Made of 30*60 stainless steel square tube Side panel: Made of 2.0 stainless steel Conveying: white PU plastic belt 1.5mm Idler: Lightweight roller Deviation correction: Cylinder automatically corrects deviation Power: 2.2KW
